Enable Metoro AI - Metoro Documentation

Guardian is Metoro’s AI. It can investigate alerts and production issues, verify deployments, assist debugging, and generate code fixes when the relevant integrations are configured. For the full set of Guardian capabilities, see AI SRE Overview. Metoro AI is disabled by default in on-premises installations. Enable it by configuring the hub apiserver with an OpenAI-compatible Responses API endpoint and an API key. The model does not need to be hosted by OpenAI. It must expose an OpenAI-compatible API for the model name you configure.

Requirements

A running Metoro hub installation.
A model endpoint reachable from the apiserver pods.
An API key for the model endpoint.
A model name or deployment name for normal AI requests.
Optionally, a separate model name or deployment name for summary requests.

Create the API Key Secret

Store the model API key in a Kubernetes Secret in the hub namespace. Do not put the key directly in the Helm values file.

kubectl -n metoro-hub create secret generic metoro-ai-openai \
  --from-literal=METORO_AI_OPENAI_API_KEY="CHANGE_ME_MODEL_API_KEY" \
  --dry-run=client -o yaml | kubectl apply -f -

If your hub uses a namespace other than metoro-hub, use that namespace instead.

Configure Helm Values

Add the following block to the hub values file:

ai:
  enabled: true
  openai:
    enabled: true
    model: gpt-5.5
    summaryModel: ""
    baseUrl: CHANGE_ME_MODEL_BASE_URL # Example: https://api.openai.com/v1
    apiKeyHeader: CHANGE_ME_MODEL_API_KEY_HEADER # Example: api-key; use "" for standard bearer auth
    externalApiSecret:
      enabled: true
      secretName: metoro-ai-openai
      keys:
        apiKey: METORO_AI_OPENAI_API_KEY

Set the fields as follows:

Field	Required	Description
`ai.enabled`	Yes	Global AI enablement flag for the hub.
`ai.openai.enabled`	Yes	Enables the OpenAI-compatible client used by Metoro AI.
`ai.openai.model`	No	Model or deployment name for primary AI requests. This value is passed through as an opaque model identifier. Defaults to `gpt-5.5`.
`ai.openai.summaryModel`	No	Model or deployment name for summary requests. If empty, Metoro uses `ai.openai.model`.
`ai.openai.reasoningEffort`	No	Reasoning effort for Guardian model calls (for example `low`, `medium`, `high`, or `xhigh`; supported values depend on the model). If empty, the apiserver default (`xhigh`) is used.
`ai.openai.baseUrl`	Yes	OpenAI-compatible API root. For OpenAI, use `https://api.openai.com/v1`; for a custom gateway, use its OpenAI-compatible root (for example `https://models.example.com/openai/v1`).
`ai.openai.apiKeyHeader`	No	Header used to send the API key. Leave empty for standard `Authorization: Bearer` API key auth. Set this when your endpoint expects a custom key header.
`ai.openai.fastModeEnabled`	No	Enables Guardian fast mode, which requests the OpenAI `fast` service tier for Guardian model calls. Defaults to `false`. Only enable this when your model endpoint supports the fast service tier.
`ai.openai.externalApiSecret.enabled`	Yes	Set to `true` to read the API key from an existing Kubernetes Secret.
`ai.openai.externalApiSecret.secretName`	Yes	Name of the Kubernetes Secret that contains the API key.
`ai.openai.externalApiSecret.keys.apiKey`	Yes	Secret key that contains the API key value.

For Azure OpenAI-compatible /openai/v1 endpoints that expect the Azure API key header, set:

apiKeyHeader: api-key

For custom gateways, set apiKeyHeader to the header name required by the gateway. When ai.enabled is true, the chart also deploys the Agent Sandbox controller, sandbox router, and Guardian SandboxTemplate used by the Guardian runner. The Guardian runner uses the same endpoint configuration as the rest of Metoro AI: ai.openai.model is passed as GUARDIAN_MODEL, ai.openai.reasoningEffort as GUARDIAN_REASONING_EFFORT, ai.openai.baseUrl as GUARDIAN_OPENAI_BASE_URL, ai.openai.apiKeyHeader as GUARDIAN_OPENAI_API_KEY_HEADER, and the apiserver reads the same Secret/key used by METORO_AI_OPENAI_API_KEY as GUARDIAN_OPENAI_API_KEY. The default images are:

quay.io/metoro/metoro-guardian-runner:onprem-10.4.0
quay.io/metoro/mirror/agent-sandbox-controller:v0.4.6
quay.io/metoro/mirror/sandbox-router:latest-main@sha256:255769504eb73f13b0cf5d91c330f12de9512e5d8ea24601cb37c0fce01dbbe0

If your installation mirrors or allowlists images individually, configure images.guardianRunner, images.agentSandboxController, and images.agentSandboxRouter for these images. global.imageRepositoryOverride rewrites their default Metoro repositories automatically, but the corresponding paths and tags must be present in the target registry. Keep the agentSandbox.image dependency pass-through value in sync when overriding images.agentSandboxController individually.

When a custom ai.openai.baseUrl or ai.openai.apiKeyHeader is configured, the Guardian runner routes all model traffic through a custom model provider and uses the stateless OpenAI Responses API: there is no server-side response storage or previous_response_id chaining, and the full conversation context is resent with each request. This is suitable for Zero Data Retention gateways and endpoints that reject store: true. The exception is Azure-hosted base URLs (for example *.openai.azure.com or *.cognitiveservices.azure.com), where the underlying agent sends store: true because Azure’s Responses API requires it.The guardian-runner image must be at the version pinned by the chart release or newer; older runner images ignore the endpoint configuration and attempt to contact api.openai.com directly.

Connect to Customer-Operated LiteLLM

Metoro does not install or manage LiteLLM. Use this configuration when your organization already operates a LiteLLM gateway that the Metoro apiserver pods can reach. Before configuring Metoro, collect:

The LiteLLM API base URL, including /v1, for example https://litellm.example.com/v1.
The LiteLLM model alias that Metoro should request. This must match a model_name exposed by your LiteLLM gateway.
A LiteLLM master key or virtual key that authorizes requests to the gateway.

The gateway must support the OpenAI-compatible /v1/responses endpoint, streaming, and tool calls for the configured model route. See the LiteLLM Responses API documentation for gateway compatibility details.

Store the LiteLLM Gateway Key

Store the LiteLLM master or virtual key in the existing Metoro AI Secret contract:

export LITELLM_API_KEY="CHANGE_ME_LITELLM_MASTER_OR_VIRTUAL_KEY"

kubectl -n metoro-hub create secret generic metoro-ai-openai \
  --from-literal=METORO_AI_OPENAI_API_KEY="${LITELLM_API_KEY}" \
  --dry-run=client -o yaml | kubectl apply -f -

unset LITELLM_API_KEY

This Secret must contain the key that LiteLLM accepts from clients. Do not put the upstream OpenAI or model-provider key in this Secret; that credential remains managed by LiteLLM.

Configure the LiteLLM Endpoint

Configure Metoro with the LiteLLM base URL and model alias:

ai:
  enabled: true
  openai:
    enabled: true
    model: CHANGE_ME_MODEL_NAME
    summaryModel: ""
    baseUrl: https://litellm.example.com/v1
    apiKeyHeader: ""
    fastModeEnabled: false
    externalApiSecret:
      enabled: true
      secretName: metoro-ai-openai
      keys:
        apiKey: METORO_AI_OPENAI_API_KEY

Keep apiKeyHeader empty when LiteLLM uses its standard Authorization: Bearer authentication. model must exactly match the LiteLLM model alias. If you set summaryModel to a different value, LiteLLM must expose a matching alias for that value as well. Set reasoningEffort only to a value supported by the model behind the LiteLLM route; leaving it empty uses Metoro’s default of xhigh. Keep fastModeEnabled disabled unless the routed model and LiteLLM configuration support OpenAI’s fast service tier.

Verify the LiteLLM Route

Before applying the Metoro Helm values, verify the gateway key, model alias, and streaming Responses API path directly:

export LITELLM_BASE_URL="https://litellm.example.com/v1"
export LITELLM_API_KEY="CHANGE_ME_LITELLM_MASTER_OR_VIRTUAL_KEY"

curl --no-buffer --request POST "${LITELLM_BASE_URL}/responses" \
  --header "Authorization: Bearer ${LITELLM_API_KEY}" \
  --header "Content-Type: application/json" \
  --data '{
    "model": "CHANGE_ME_MODEL_NAME",
    "input": "Reply with OK.",
    "stream": true,
    "store": false
  }'

unset LITELLM_BASE_URL LITELLM_API_KEY

A successful request streams response events and completes normally. This confirms the base URL, authentication, model alias, and stateless streaming path; verify tool calls through Guardian after applying the Metoro configuration.

Apply to an Existing Hub

Edit metoro-hub-values.yaml and add the ai block above. Apply the updated values:

helm upgrade --install metoro oci://quay.io/metoro/charts/metoro-onprem
  --namespace metoro-hub
  --version CHANGE_ME_YOUR_CURRENT_METORO_VERSION
  --values metoro-hub-values.yaml

If you install from an OCI chart instead of a local chart path, keep the same values file and use your normal chart reference and chart version.

Verify the Rollout

Wait for the apiserver rollout:

kubectl -n metoro-hub rollout status deploy/apiserver --timeout=10m

Confirm the apiserver Deployment has the AI environment variables:

kubectl -n metoro-hub get deploy apiserver \
  -o jsonpath='{range .spec.template.spec.containers[?(@.name=="apiserver")].env[*]}{.name}{"\n"}{end}' \
  | grep '^METORO_AI'

Expected names:

METORO_AI_ENABLED
METORO_AI_OPENAI_ENABLED
METORO_AI_OPENAI_MODEL
METORO_AI_OPENAI_SUMMARY_MODEL
METORO_AI_OPENAI_BASE_URL
METORO_AI_OPENAI_API_KEY

When AI is enabled, also confirm these names are present:

MCP_ENDPOINT
GUARDIAN_ENABLED
GUARDIAN_OPENAI_API_KEY
GUARDIAN_MODEL
GUARDIAN_OPENAI_BASE_URL
GUARDIAN_CALLBACK_BASE_URL
GUARDIAN_RUNNER_MODE
GUARDIAN_AGENT_SANDBOX_TEMPLATE
GUARDIAN_AGENT_SANDBOX_NAMESPACE
GUARDIAN_AGENT_SANDBOX_API_URL
GUARDIAN_AGENT_SANDBOX_READY_TIMEOUT
GUARDIAN_AGENT_SANDBOX_RUN_TIMEOUT

If ai.openai.apiKeyHeader is set, GUARDIAN_OPENAI_API_KEY_HEADER is also present. If ai.openai.fastModeEnabled is true, GUARDIAN_FAST_MODE_ENABLED is also present. If ai.openai.reasoningEffort is set, GUARDIAN_REASONING_EFFORT is also present.

Enable Guardian AI in the UI

After the apiserver rollout completes, enable Guardian AI in Metoro. Go to Settings -> Features -> Guardian AI -> Guardian AI Status and turn on the toggle.

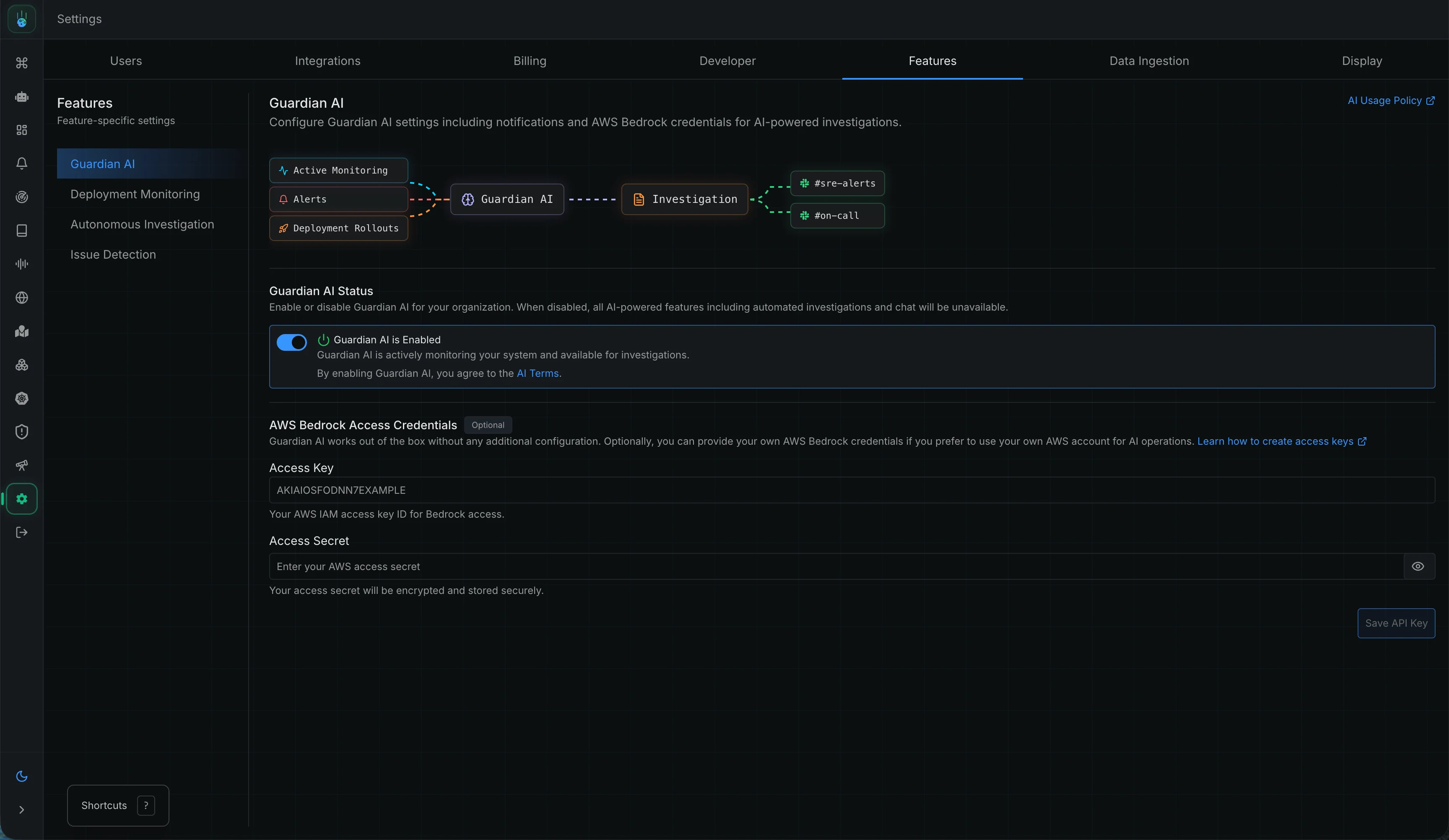

Guardian AI Status toggle in Settings -> Features -> Guardian AI.

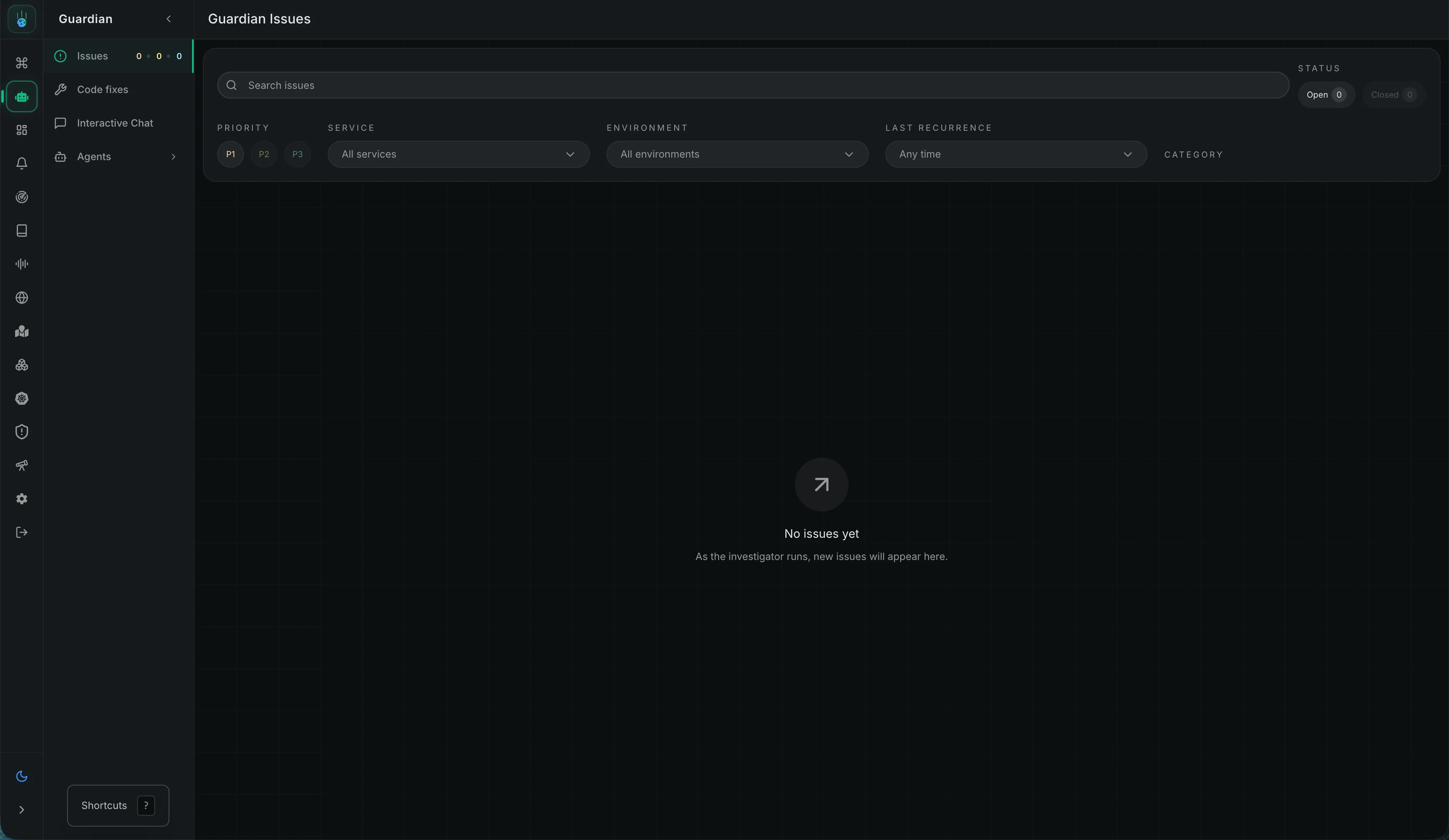

After Guardian AI is enabled, the home page should show Guardian AI chat. You can also open Guardian AI chat by pressing g, then c, from anywhere in the platform. Guardian pages, including Guardian Issues and Guardian Deployment Verification, are available from the Guardian section in the side bar.

Code fix workflows are not currently available in on-premises installations.

Verify Guardian Chat

Open Guardian AI chat and ask anything: For example:

What is your favourite pasta shape?

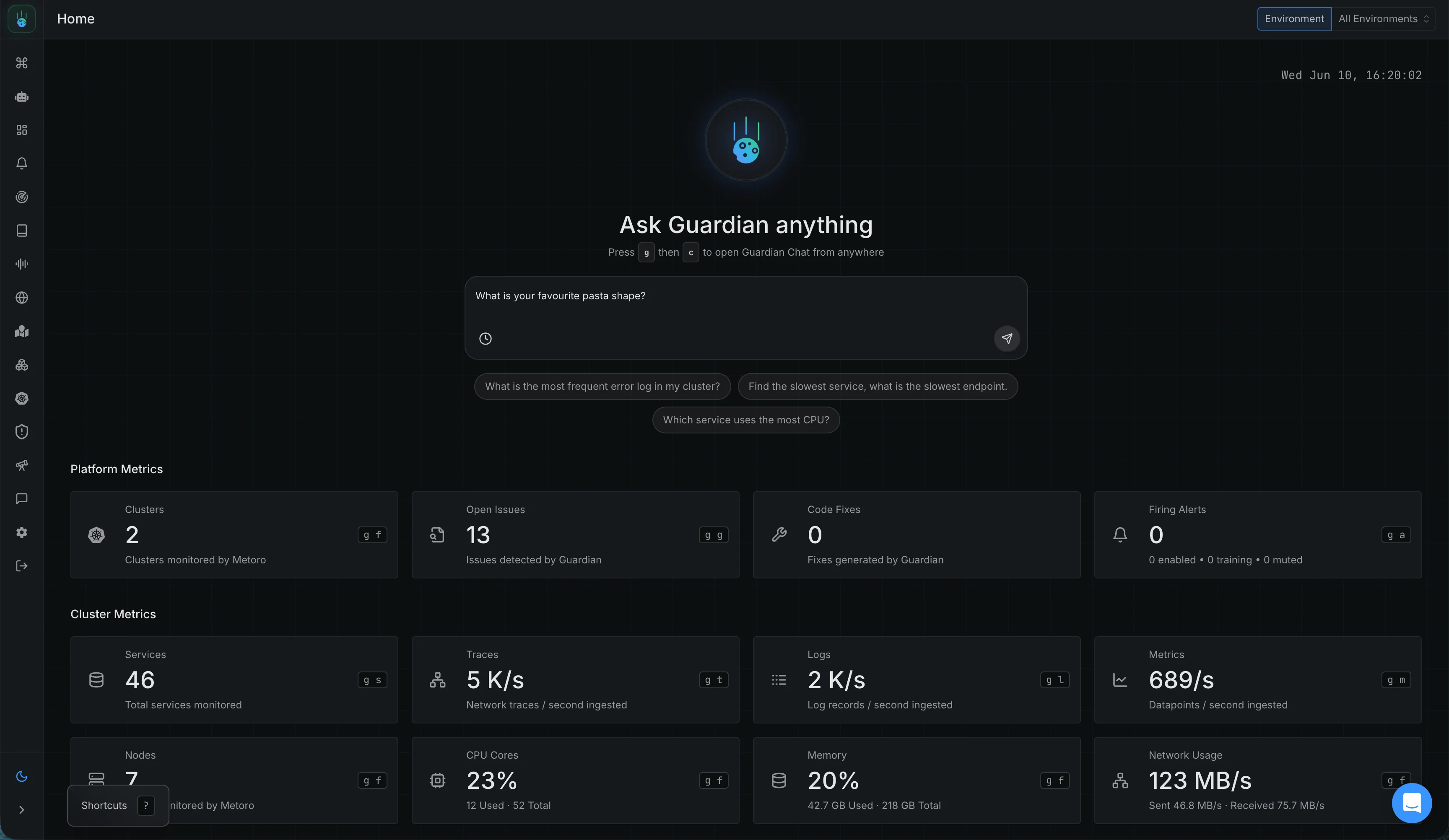

Guardian AI chat prompt with "What is your favourite pasta shape?" entered.

Guardian should return a normal chat response from the configured model endpoint.

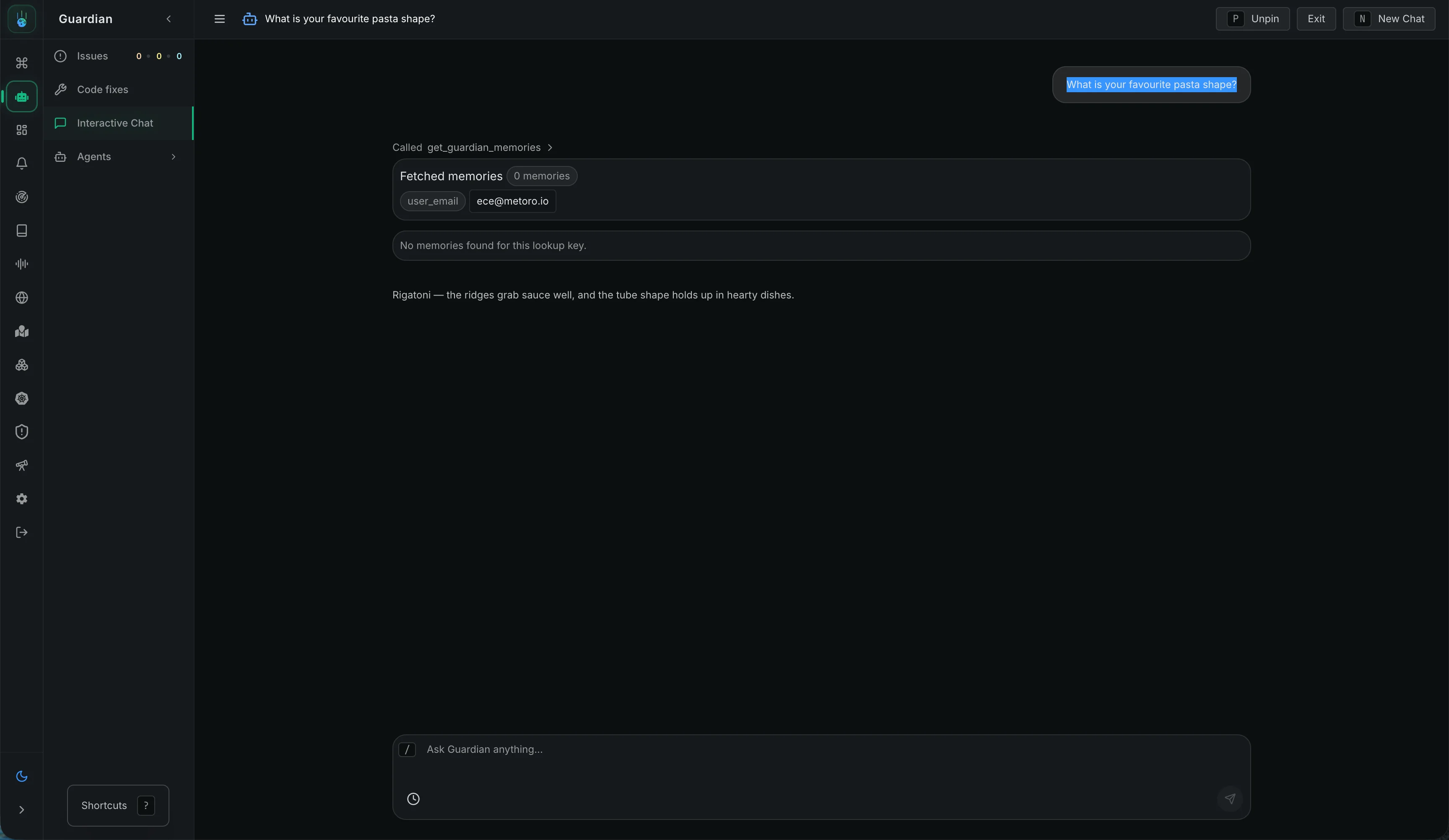

Guardian AI chat response from the configured model endpoint.

Troubleshooting

Helm Fails Before Applying

Check that all required fields are set when both ai.enabled and ai.openai.enabled are true:

ai.openai.enabled=true
ai.openai.model (defaults to gpt-5.5; fails only if explicitly set to an empty string)
ai.openai.baseUrl
ai.openai.externalApiSecret.secretName
ai.openai.externalApiSecret.keys.apiKey

AI Requests Return 401 Unauthorized

Check:

The API key value in the Kubernetes Secret.
For LiteLLM, the Secret contains the LiteLLM master or virtual key, not the upstream model-provider key.
ai.openai.baseUrl points at the OpenAI-compatible API root.
ai.openai.apiKeyHeader matches the endpoint. Leave it empty for bearer auth. Use api-key for Azure OpenAI-compatible endpoints that expect the Azure API key header.

LiteLLM Reports That the Model Does Not Exist

Check that ai.openai.model exactly matches a model alias exposed by LiteLLM. If ai.openai.summaryModel is set, LiteLLM must expose that alias too. Test the same alias against ${LITELLM_BASE_URL}/responses using the direct verification request above. A provider-qualified upstream model name is not interchangeable with the LiteLLM alias unless your gateway exposes that exact name.

Metoro Cannot Reach LiteLLM or TLS Verification Fails

Confirm that the LiteLLM base URL is reachable from the Metoro apiserver pods, not only from an administrator workstation. The URL must include the OpenAI-compatible /v1 root. For gateways using a private or self-signed CA, configure the on-prem chart’s trustedCAs values so the apiserver and Guardian runner trust the gateway certificate.

Guardian AI Pages Still Show Disabled or Chat Is Missing

After the Helm values are applied and the in-platform Guardian AI Status toggle is on, allow up to 5 minutes for the change to take effect. If Guardian AI pages still show as disabled or Guardian AI chat does not appear on the home page, clear the browser cache and hard reload the platform. If the UI still does not update, verify the apiserver rollout and the METORO_AI environment variables again. If issues persist, contact support. We are here to help!
