Metoro’s Log Transformations feature allows you to parse your log messages or attributes to create custom attributes. This enables you to extract specific information from your logs and use it in your searches, making it easier to analyze and filter log data.

​
Creating Log Transformations

  1. Navigate to the Logs page in the Metoro UI.
  2. In the search bar, click the Transformations button (shown below) on the most left side.
Log Transformations button on the left side of the log search bar
  1. Log Transformations input pills will appear, under the search bar (see below).

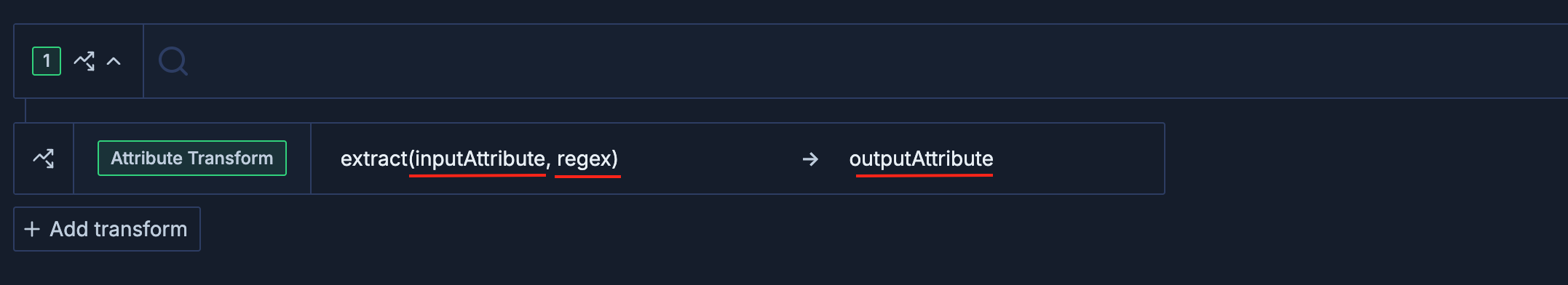

Log Transformations input pills
  1. Fill in the details:
    • inputAttribute: Specify the log attribute you want to transform. This can be a standard log attribute (like message, kubernetes.container.name, etc.) or a custom attribute you have created from previous transformations.
    • regex: Enter a regular expression in re2 form to match the log messages or attributes you want to transform. Use capturing groups to extract specific parts of the log.
    • outputAttribute: Enter the name of the new attribute you want to create from the transformation. This custom attribute will appear in custom columns and can be used the same way as any other log attribute for filtering and searching.
You can use the message as inputAttribute to transform the log message, or any other log attribute that you have in your json structured logs.
  1. To see the outputAttribute as a column in the logs table, click the Columns button (shown below) on the most right side of the search bar.
Custom Columns button on the right side of the Logs table For more information on how to use custom columns, see our Custom Columns Guide.
  1. Ta da! Your custom attribute is now available for use in log searches and saved searches.

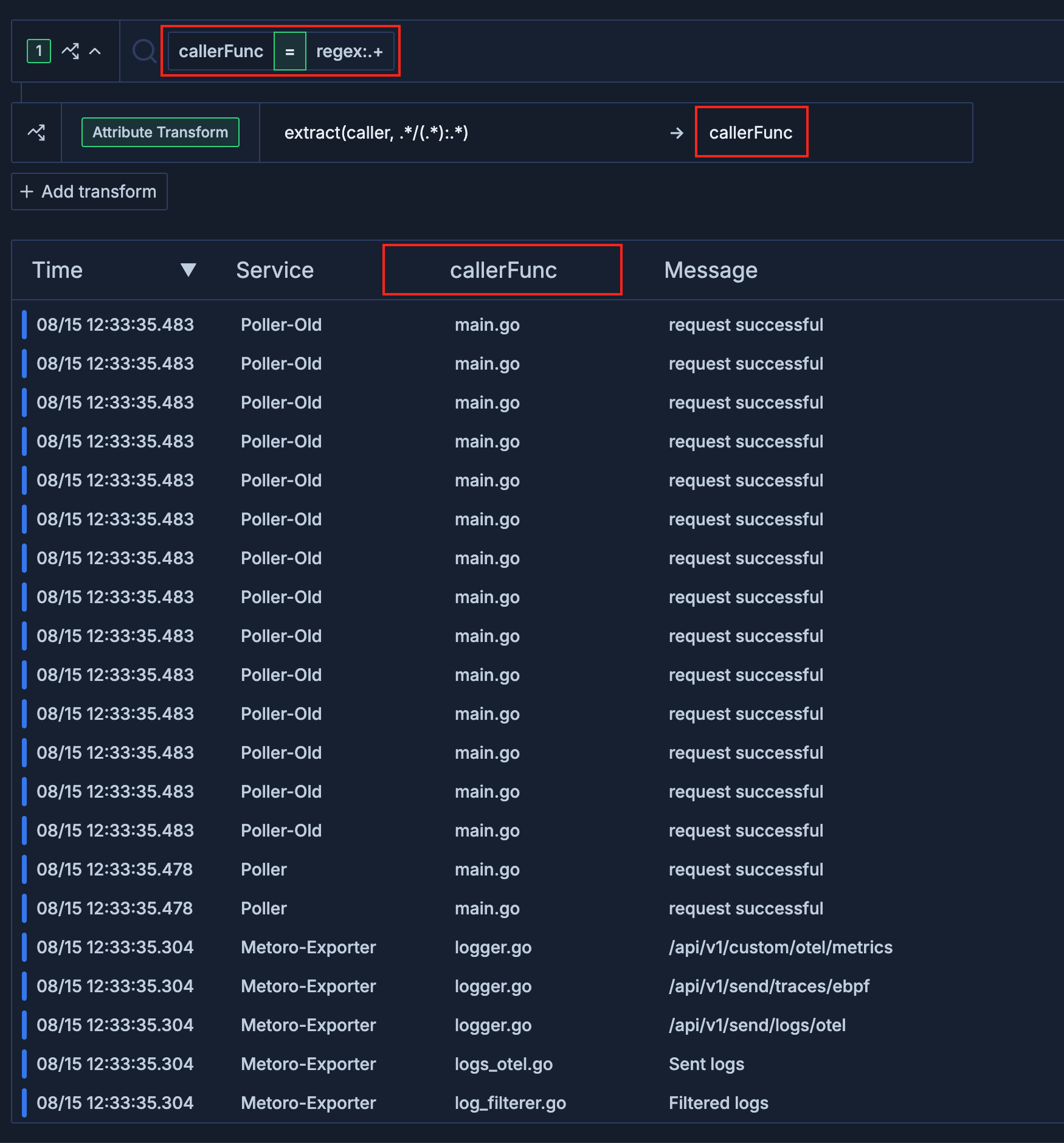

Transformation Attribute added as a column to the Logs table
You can use the custom attributes you create with Log Transformations to filter or as a grouping attribute in your log searches. This allows you to analyze logs based on specific patterns or extracted information.

​
More Examples and Features

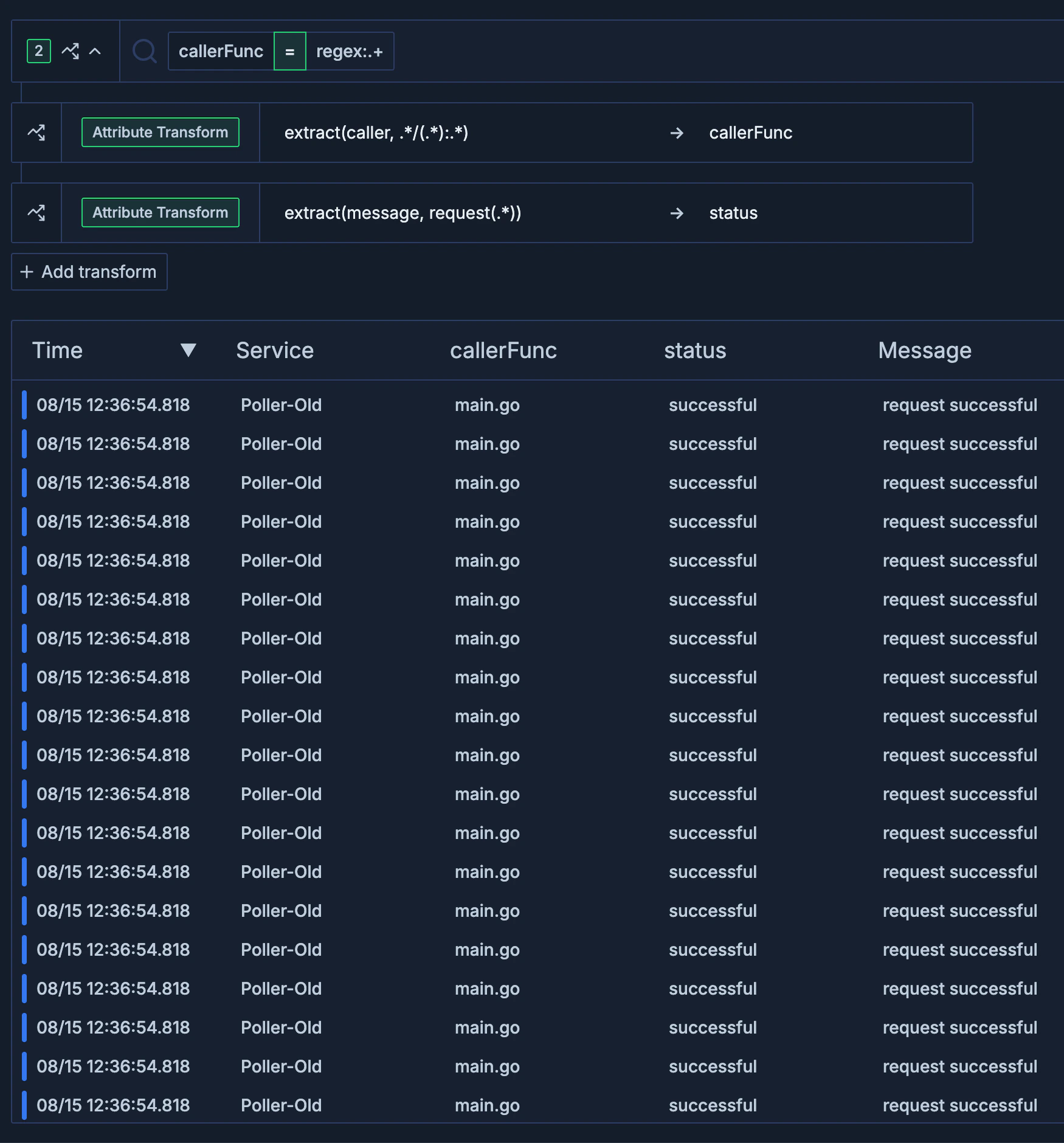

  1. You can use multiple transformations in a single search. Each transformation will create a new custom attribute that can be used independently. Multiple transformations
  2. You can chain transformations by using the output of one transformation as the input for another. This allows you to build complex parsing logic.
  3. You can use transformations to create alerts.
  4. You can use transformations to plot graphs.
  5. You can use MetoroQL syntax if you prefer to write transformations in a more structured query format. For example:
    count(transformAttribute(transformAttribute(logs{callerFunc=~".+"}, "callerFunc", extract("caller", ".*/(.*):.*")), "status", extract("message", "request(.*)")))

​
MetoroQL Syntax for Log Transformations

Syntax for transformAttribute in MetoroQL:
count(transformAttribute(logs, <outputAttributeName>, extract(<inputAttributeName>, <regex>)))
  • You can use a nested transformAttribute, like this:
count(transformAttribute(transformAttribute(logs, <outputAttributeName1>, extract(<inputAttributeName1>, <regex1>)), <outputAttributeName2>, extract(<inputAttributeName2>, <regex2>)))
  • You can group by the custom attribute you created using transformAttribute in your MetoroQL queries. For example:
count(transformAttribute(logs, "callerFunc", extract("message", "caller=(.*)"))) by (callerFunc)
  • You can use the output attribute you created to filter logs in your MetoroQL queries. For example:
count(transformAttribute(logs{callerFunc=~".+"}, "callerFunc", extract("message", "caller=(.*)")))

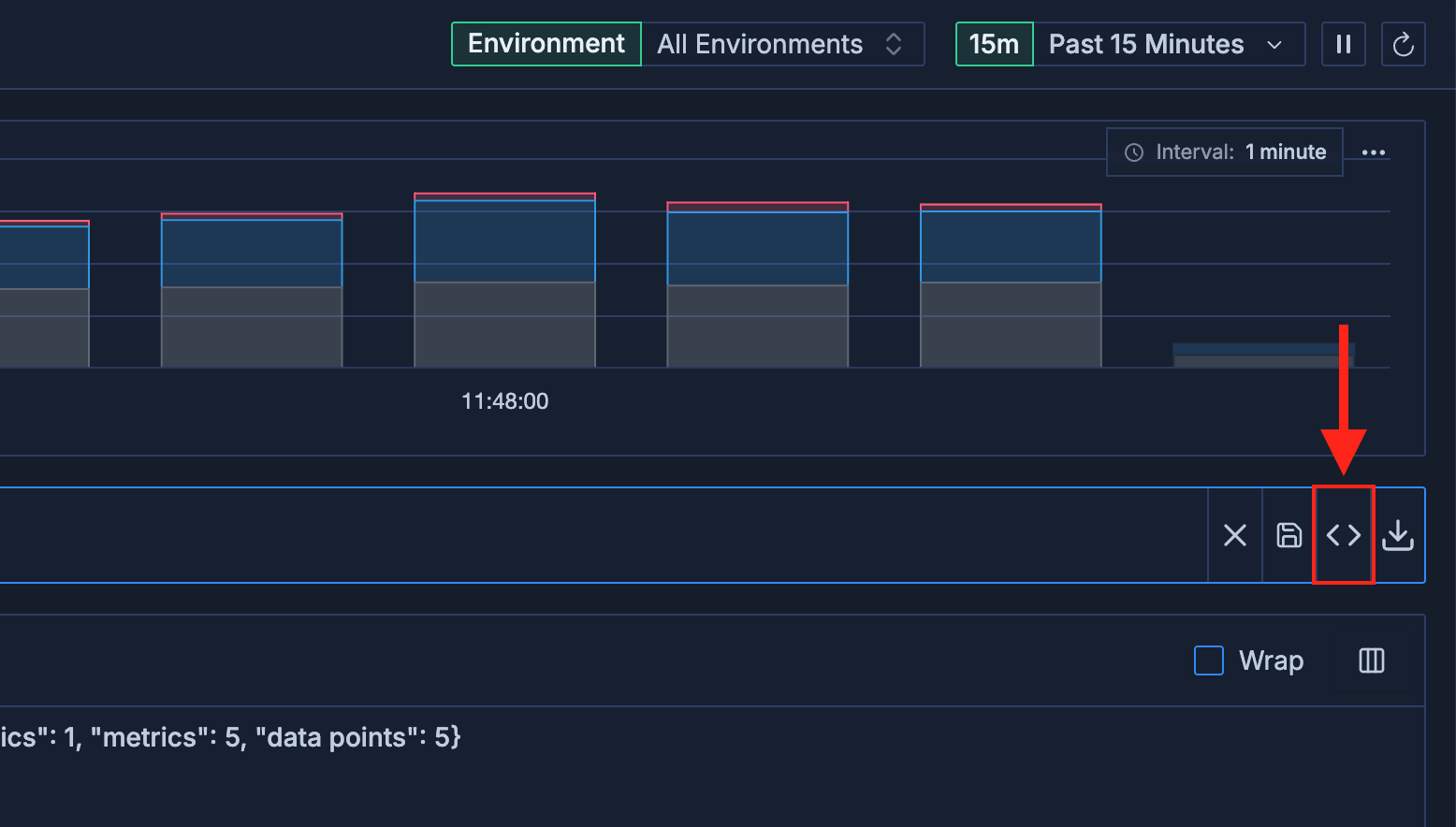

Easily swap between MetoroQL and UI by using the < > icon on the right side of the search bar. Swap to MetoroQL to see the transformAttribute syntax
